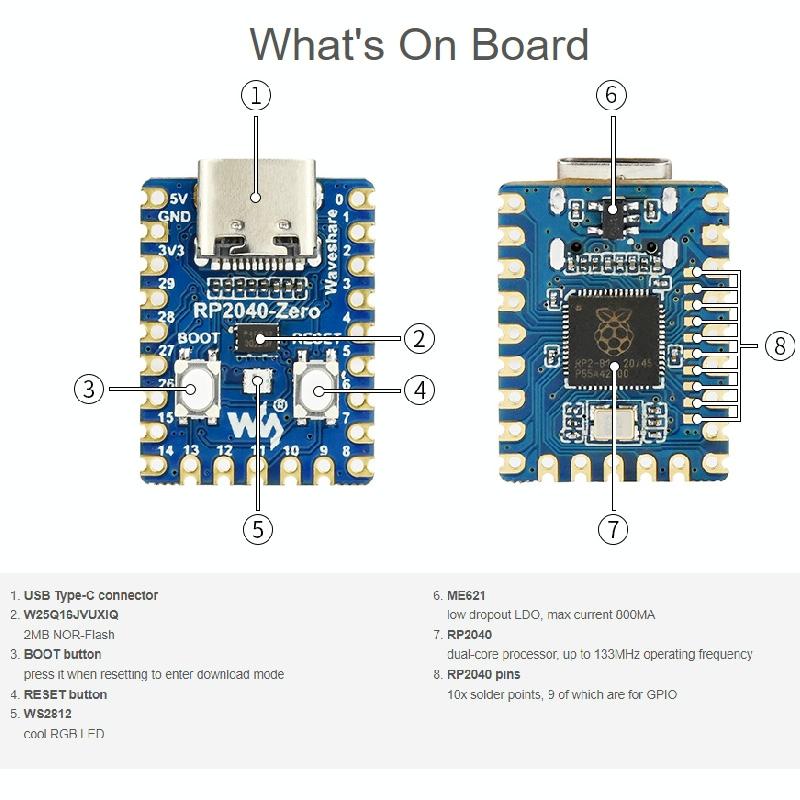

Waveshare RP2040-Zero Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with Pinheader mini Version (WAVESHARE)
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of on-board Flash memory
4. USB-C connector, keeps it up to date, easier to use
5. Castellated module allows soldering direct to carrier boards
6. USB 1.1 with device and host support
7. Low-power sleep and dormant modes
8. Drag-and-drop programming using mass storage over USB
9. 29 x multi-function GPIO pins (20 x via edge pinout, others via solder points)
10. 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels
11. Accurate clock and timer on-chip
12. Temperature sensor
13. Accelerated floating-point libraries on-chip
14. 8 x Programmable I/O (PIO) state machines for custom peripheral support
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of on-board Flash memory
4. USB-C connector, keeps it up to date, easier to use
5. Castellated module allows soldering direct to carrier boards
6. USB 1.1 with device and host support
7. Low-power sleep and dormant modes
8. Drag-and-drop programming using mass storage over USB
9. 29 x multi-function GPIO pins (20 x via edge pinout, others via solder points)
10. 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels
11. Accurate clock and timer on-chip
12. Temperature sensor
13. Accelerated floating-point libraries on-chip
14. 8 x Programmable I/O (PIO) state machines for custom peripheral support
