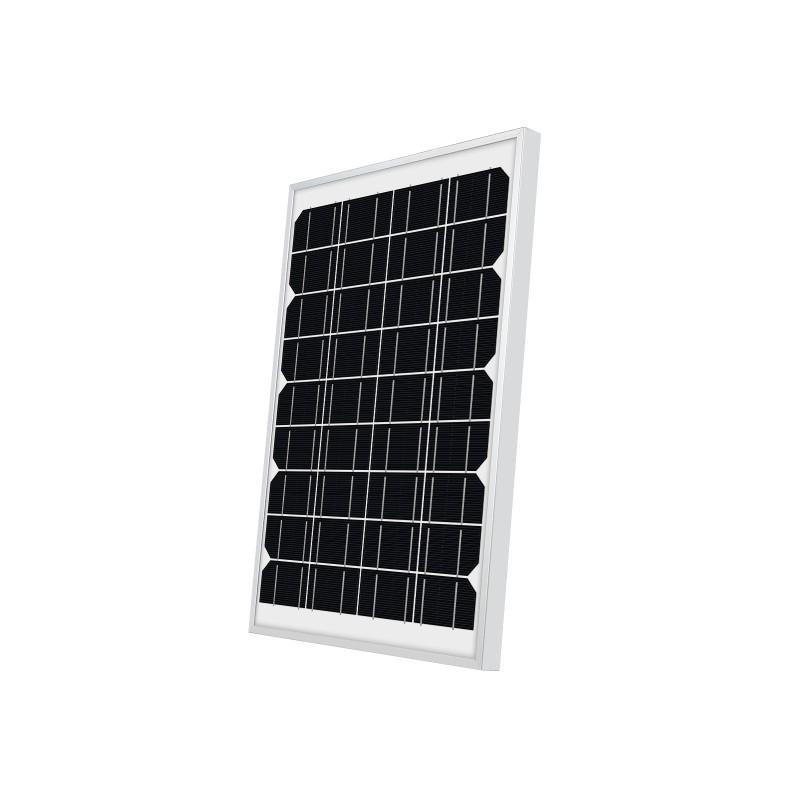

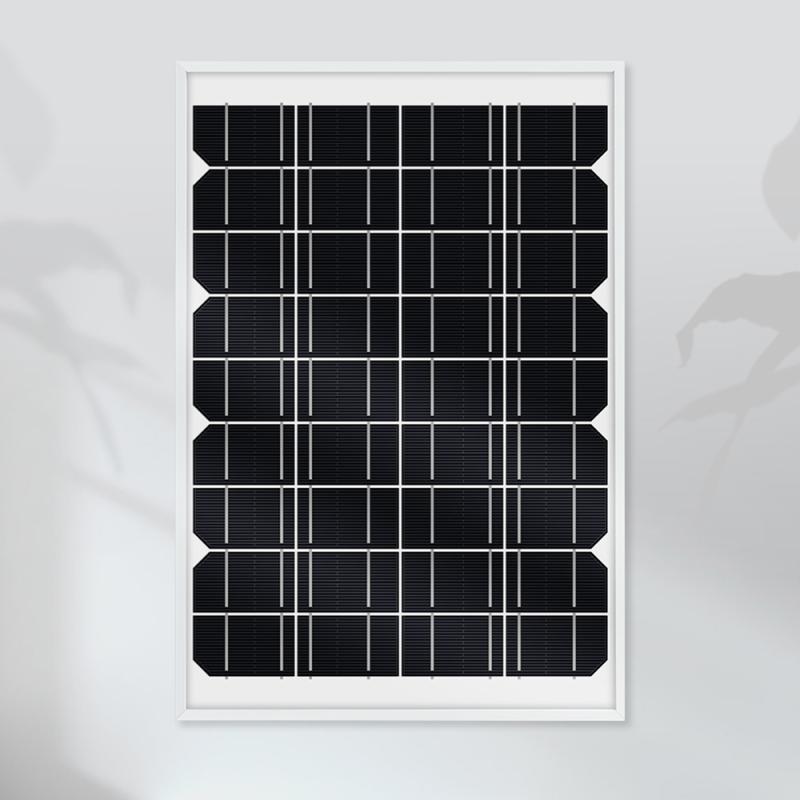

Waveshare High Conversion Efficiency 18V 10W Solar Panel (WAVESHARE)
1. Solar cell type: Polysilicon
2. Power: 10 Wp
3. Output power tolerance: +/-3%
4. Conversion efficiency: Greater than 20%
5. Operating voltage: 17.6V
6. Operating current: 0.57A
7. Open circuit voltage: 21.6V
8. Short circuit current: 0.61A
9. Cell quantity: 36 (4x9)
10. Standard system voltage: 1000V
11. Operating temperature: -40 degree C ~ +85 degree C
12. Pressure on panel:30m/s(200kg/sq.m) (Max)
13. Cable length:90 cm

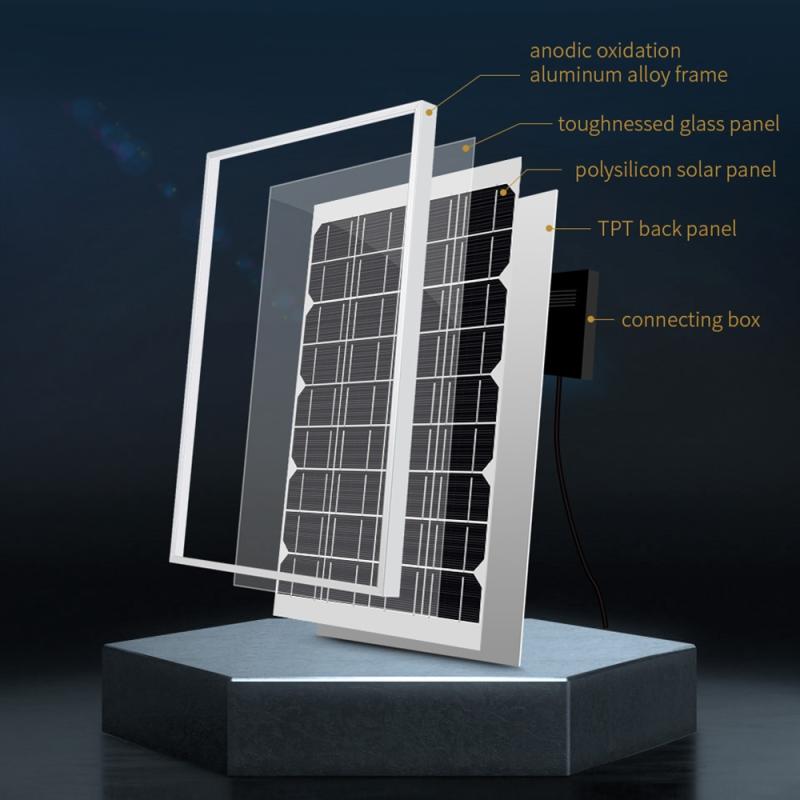

14. Frame material: Anodic oxidation aluminum alloy
15. Dimensions: 340 x 232 x 17 mm
19. Weight:0.935 kg
2. Power: 10 Wp
3. Output power tolerance: +/-3%
4. Conversion efficiency: Greater than 20%
5. Operating voltage: 17.6V
6. Operating current: 0.57A
7. Open circuit voltage: 21.6V
8. Short circuit current: 0.61A
9. Cell quantity: 36 (4x9)
10. Standard system voltage: 1000V
11. Operating temperature: -40 degree C ~ +85 degree C
12. Pressure on panel:30m/s(200kg/sq.m) (Max)
13. Cable length:90 cm
14. Frame material: Anodic oxidation aluminum alloy
15. Dimensions: 340 x 232 x 17 mm
19. Weight:0.935 kg
