NK-M009 1080P Full HD HDMI to 2 x SDI Output Converter(Black)
About the product

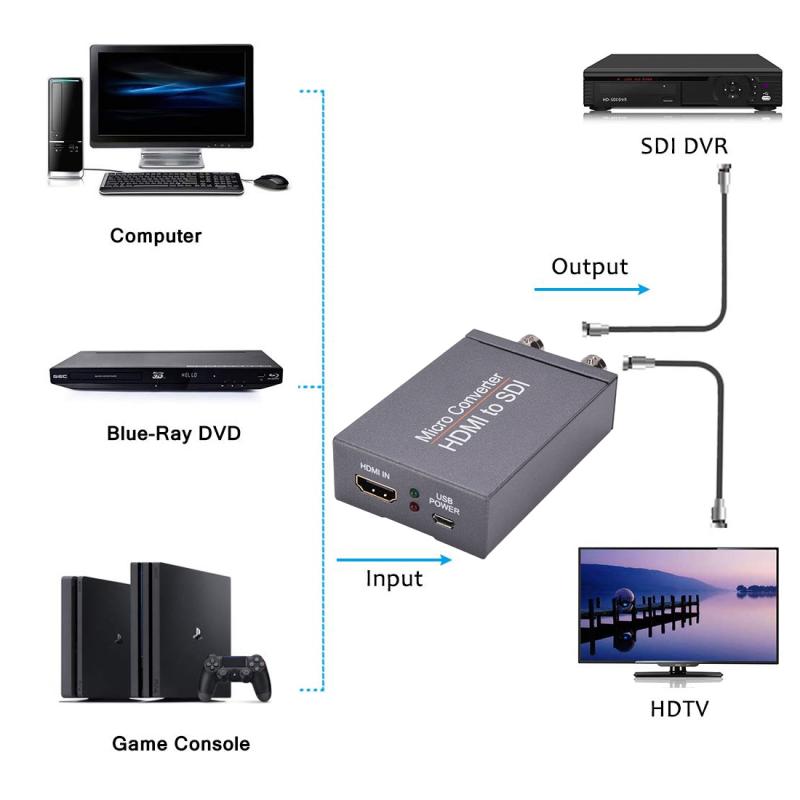

1. Display the HDMI source on the SDI display.
2. The bit rate of the SDI interface is 2.970 Gbit/s, 1.485 Gbit/s and 270 Mb/s.
3. Support hdmi input timing: 720p @ 50/60, 1080i@50/60, 1080p@50/60.
4. Convert HDMI signals to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, bit rate 270Mbit/s) 720p/1080i to HD-SDI (SMPTE 292M, bit rate 1.485Gbit/s or 1.485/ 1.001Gbit/s)
5. Support SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI) or 300 meters (SD-SDI)
6. Size: 100 x 65 x 25mm
7. Weight: 210g
Packing List
1 x HDMI to two SDI Converter
1 x 5V/1A DC Power Adapter
1 x Operating Manual
1. Display the HDMI source on the SDI display.
2. The bit rate of the SDI interface is 2.970 Gbit/s, 1.485 Gbit/s and 270 Mb/s.
3. Support hdmi input timing: 720p @ 50/60, 1080i@50/60, 1080p@50/60.
4. Convert HDMI signals to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, bit rate 270Mbit/s) 720p/1080i to HD-SDI (SMPTE 292M, bit rate 1.485Gbit/s or 1.485/ 1.001Gbit/s)
5. Support SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI) or 300 meters (SD-SDI)
6. Size: 100 x 65 x 25mm
7. Weight: 210g
Packing List
1 x HDMI to two SDI Converter
1 x 5V/1A DC Power Adapter
1 x Operating Manual
