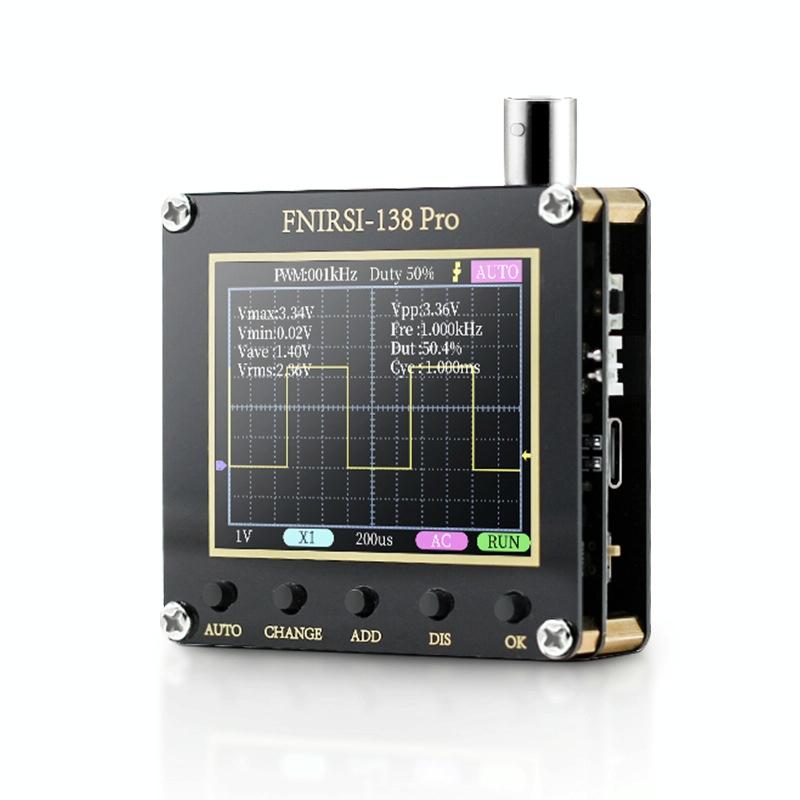

FNIRSI Handheld Small Teaching Maintenance Digital Oscilloscope, Specification: Upgrade Without Battery (FNIRSI)
1. Power supply: USB direct power supply
2. Power supply voltage: 5-6V
3. Sampling rate: 2.5MS/s
4. Bandwidth: 200KHz
5. Voltage range: X1 40V (Vpp:80V); X10 400V (Vpp:800V)
6. Coupling method: AC/DC

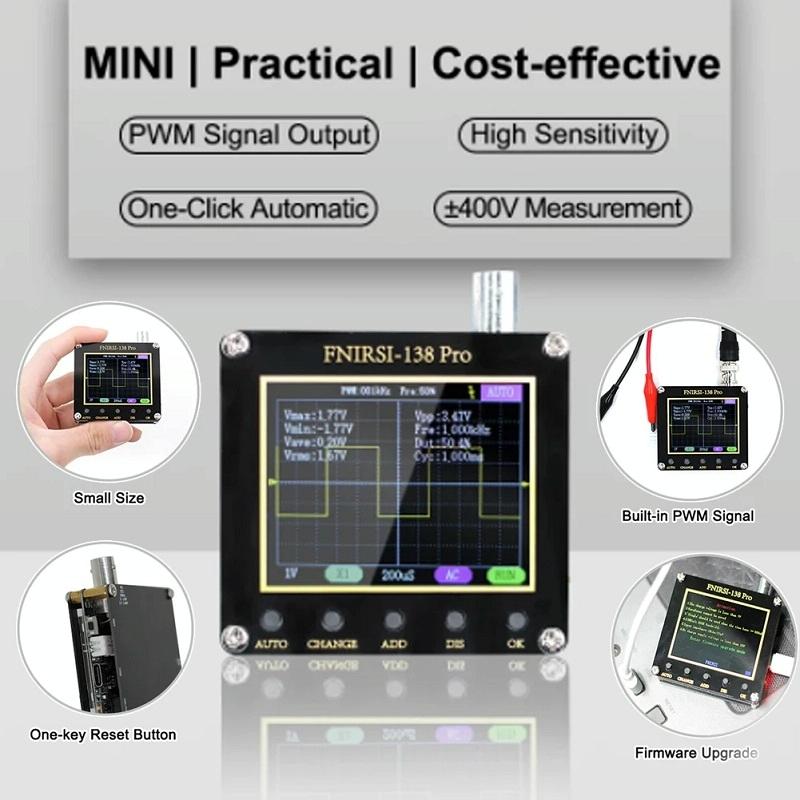

7. PWM output: 3.3V frequency 0-80kHz
8. Display: 2.4 inches 320x240

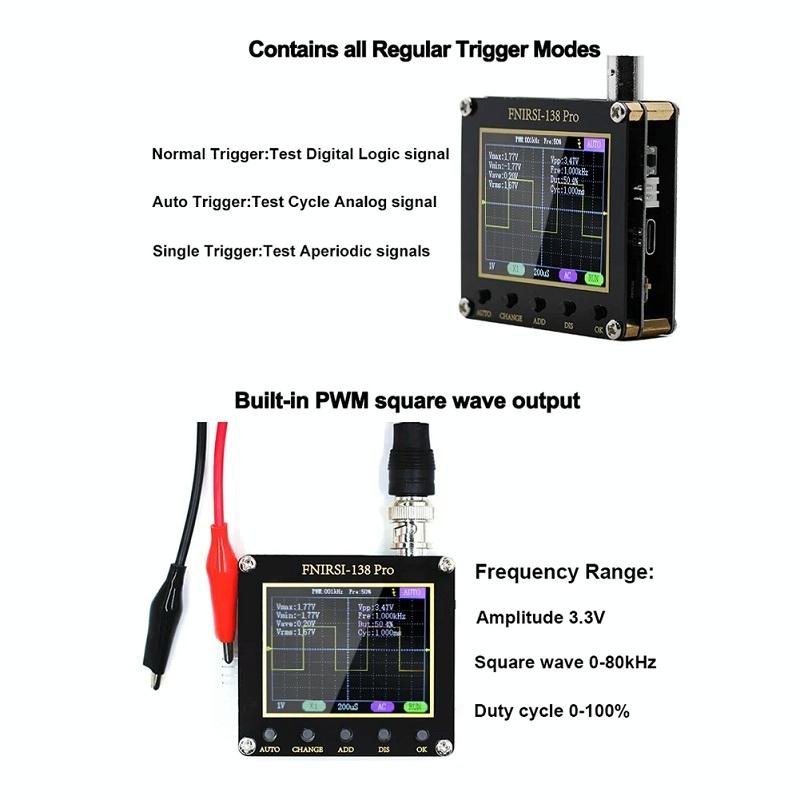

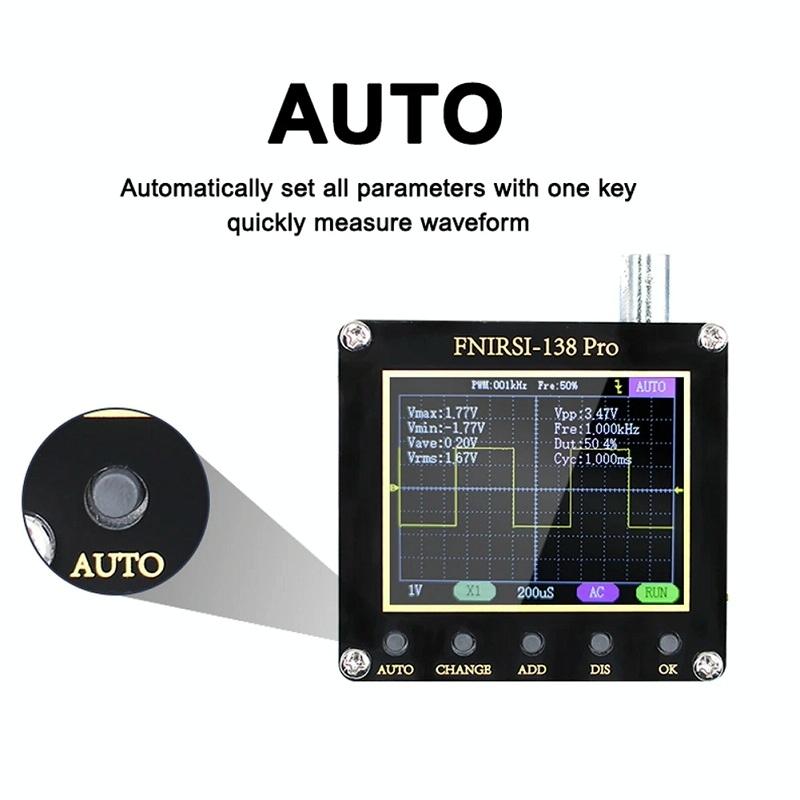

9. Automatic trigger: test cycle simulation signal
10. Single trigger: test sudden non-periodic signals
11. Normal triggering: testing digital logic signals

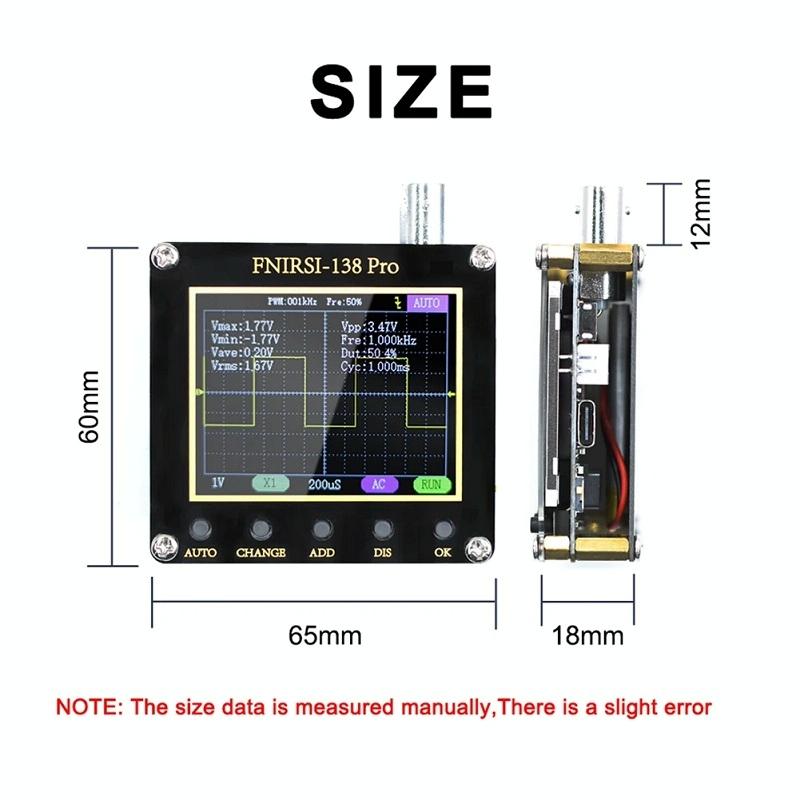

12. Size: 65x60x18mm
13. Weight: 53g (excluding battery)

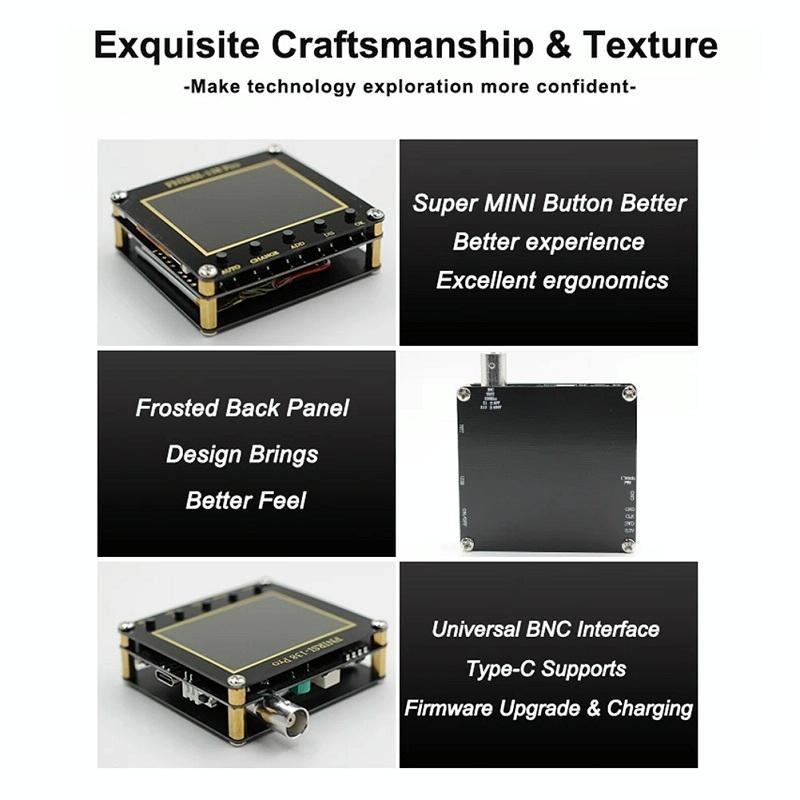

14. Small buttons, comfortable to press and ergonomically designed
15. Universal BNC interface, Type-C supports data transmission and charging
16. Note: The high configuration comes standard with an extra 10x P6100 probe
