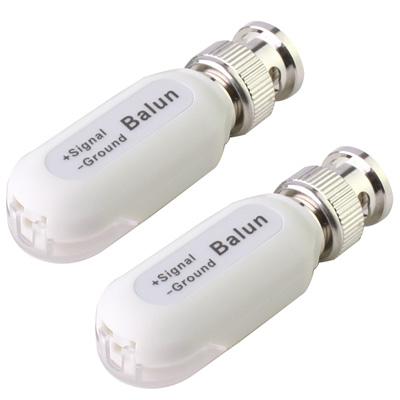

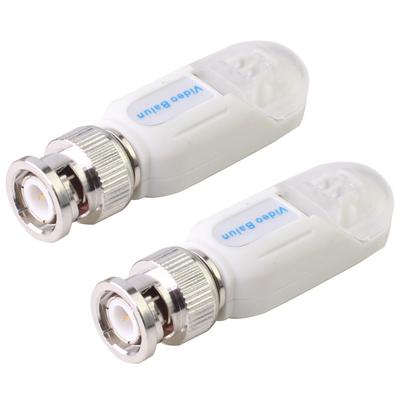

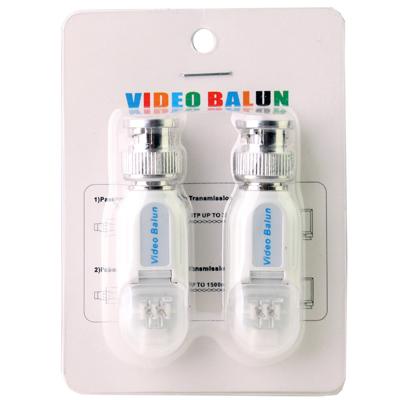

2 PCS UTP Network Video Balun CAT5 to Camera CCTV BNC DVR O-611(White)

1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any passive transceiver

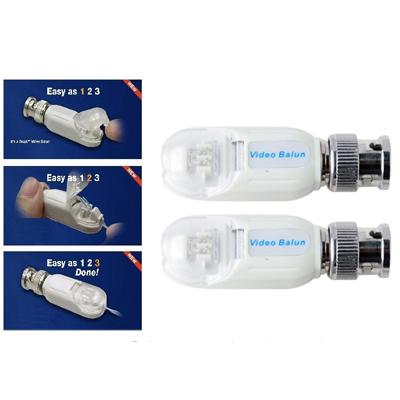

3. Tool-less, installs in seconds, no need to strip the wires
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size and easy installation

Technical Specifications
1. Frequency response: DC to 8MHZ
2. Attenuation: 0.5dB typ
3. Impedance: BNC:75 ohms; Terminal: 100 ohms
4. Working Temperature: -10 degree C to + 70 degree C
5. Storage Temperature: -30 degree C to + 70 degree C
6. Humidity: 0 to 95%
7. Dimension: 56mm x 17mm x 15mm
